Choose your lowboy family.
Lowboy trailers
Start with the range that fits the work.
Pick the family that matches your load, then open it for full drawings and models — or request a quote.
35–40 Ton
A practical starting point for common equipment moves and simpler heavy haul needs.
50–55 Ton
The core heavy haul range for buyers comparing deck, axle, and swing clearance options.
60–80 Ton
For larger loads where axle setup, deck length, and route details become more important.
Extendables
For long machines and variable hauling work that needs extra deck length.
Side by side
Compare all four classes
Specs vary by model — these are typical ranges. Quote any class to confirm your build.
| Class | Deck height | Deck length | Swing | Axles | Best for | |
|---|---|---|---|---|---|---|
| 35–40 Ton | 18–22 in | 18–30 ft | 86–110 in | 2 + flip | Common equipment moves | Quote → |
| 50–55 Ton | 18–22 in | 18–30 ft | 86–110 in | Tri + flip | Core heavy haul | Quote → |
| 60–80 Ton | 22–24 in | 28 ft | 114–126 in | 3+2 / 3+3+3 | Large multi-axle loads | Quote → |
| Extendable | 22 in | 30–50 ft | 86–110 in | Tri-axle | Long machines | Quote → |
Top sellers by category
35-40 Ton Lowboys

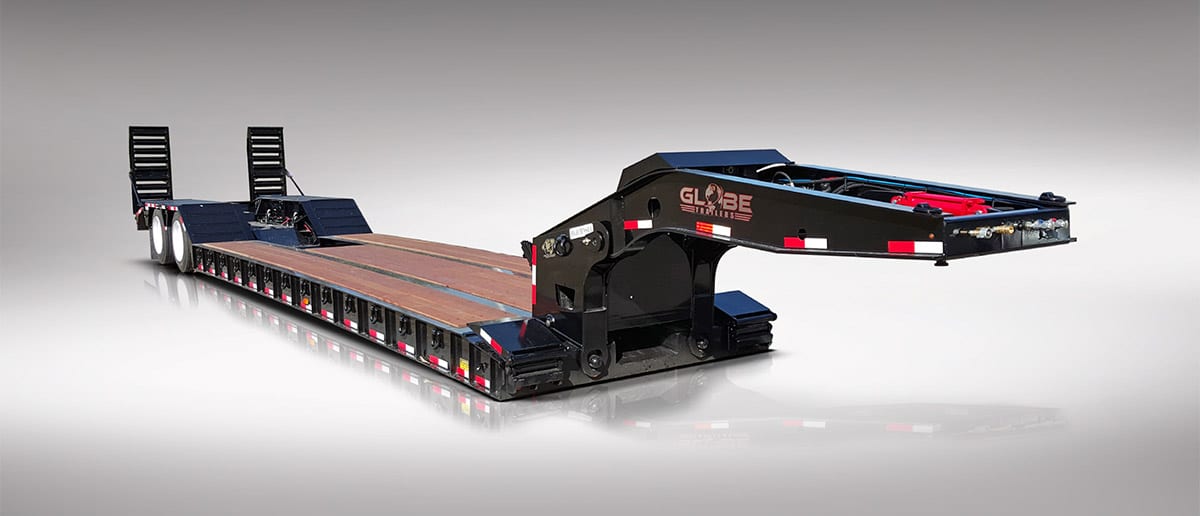

35 Ton Lowboy 35LB1193196 35T LB w/ beavertail & ramps — built to order

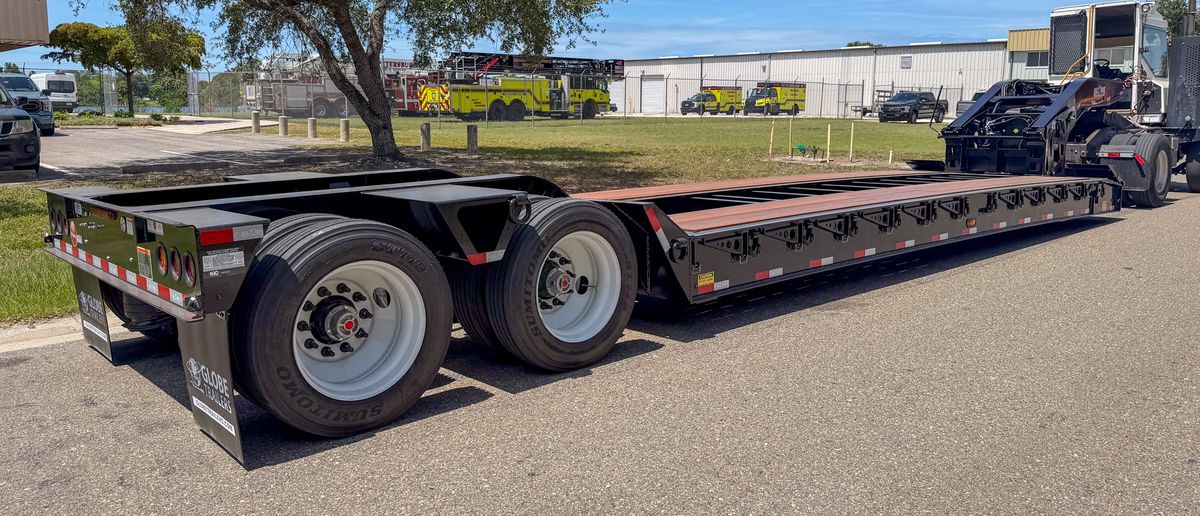

35 Ton Lowboy 35LB1235154 35T LB — NGB detachable neck, built to order
35 Ton Lowboy 35LB1228339 35T LB — NGB detachable neck, built to order
35 Ton Lowboy 35LB1221244 35T LB — NGB detachable neck, built to order
40 Ton Lowboy 40LB1384645 40T LB w/ air ramps — built to order
35 Ton Lowboy 35LB1306234 35T LB w/ beavertail & ramps — built to order

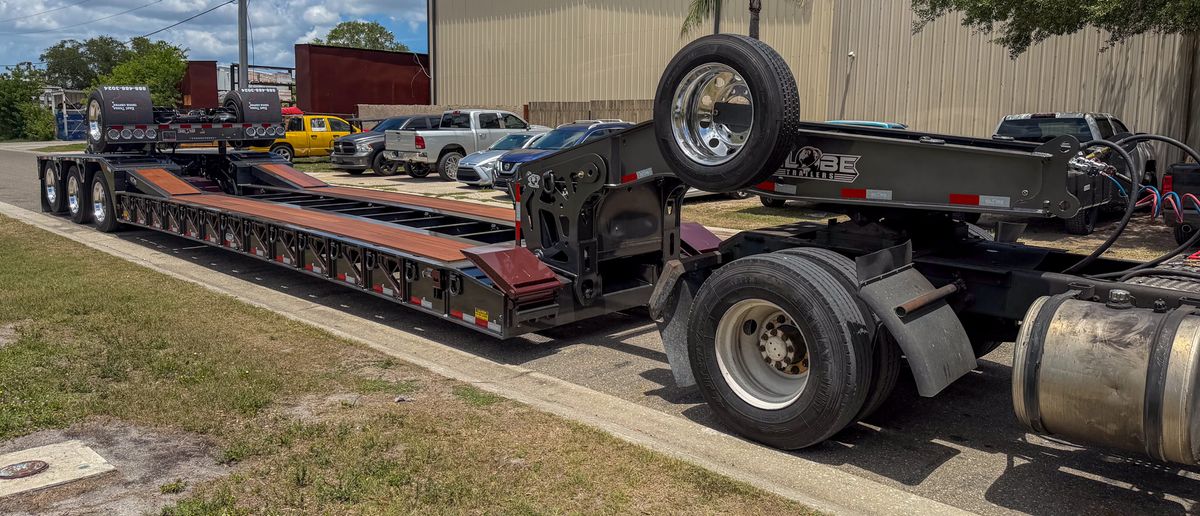

50-55 Ton Lowboys
55 Ton Lowboy 55LB1007203 55T LB hydraulic flip — NGB detachable neck
55 Ton Lowboy 55LB975302 55T LB hydraulic flip — NGB detachable neck
55 Ton Lowboy 55LB458712 55T LB flip — built to order
51 Ton Lowboy 51LB834201 51T LB — NGB detachable neck, built to order
55 Ton Lowboy 55LB546040 55T LB — built to order
55 Ton Lowboy 55LB1280363 55T LB flip — built to order
60-80 Ton Lowboys
60 Ton Lowboy 60LB1205583 60T LB drop-side flip — hyd. detachable neck
60 Ton Lowboy 60LB1281055 60T LB flip — built to order
60 Ton Lowboy 60LB1285196 60T LB flip — built to order
60 Ton Lowboy 60LB1392384 60T LB flip — built to order
60 Ton Lowboy 60LB1385898 60T LB flip — built to order
60 Ton Lowboy 60LB1309412 60T LB flip — built to order
Extendables
55 Ton Extendable 55LBE575576 55T extendable flip — NGB detachable neck

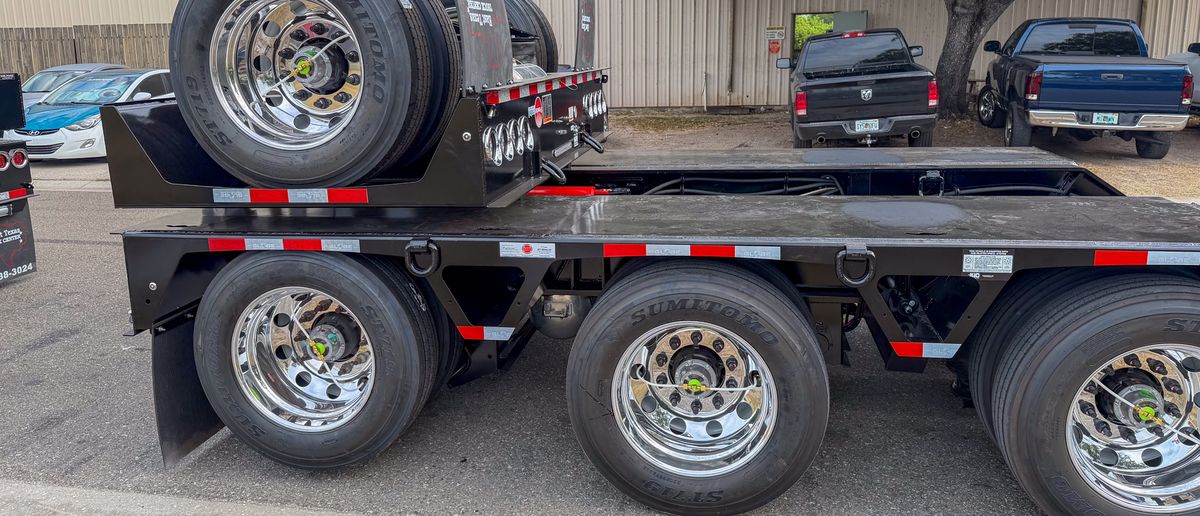

55 Ton Extendable 55LBE1236596 55T extendable flip — built to order
55 Ton Extendable 55LBE1038021 55T extendable flip — built to order
55 Ton Extendable 55LBE1043309 55T extendable stinger — built to order
55 Ton Extendable 55LBE1207284 55T extendable double flip — built to order
55 Ton Extendable 55LBE1145160 55T extendable flip — built to order
Lowboy Trailer Dimensions & Specifications
Globe lowboy trailer dimensions at a glance: deck height 18–24 in, deck length 18–50 ft (extendable), width 8.5 ft (102 in), swing clearance 86–126 in, and capacity 35–80 ton — each built to order to match your load.
| Model | Capacity | Deck height | Deck length | Swing clearance | Axles |
|---|---|---|---|---|---|
| 35–40 Ton Lowboy Trailer | 35–40 ton | 18–22 in | 18–30 ft | 98 in | 2 + flip |
| 50–55 Ton Lowboy Trailer | 50–55 ton | 18–22 in | 18–30 ft | 98–102 in | Tri-axle + flip |
| 60–80 Ton Lowboy Trailer | 60–80 ton | 22–24 in | 28 ft | 114–126 in | 3+2 / 3+3+3 |
| Extendable Lowboy Trailer | 55–60 ton | 22 in | 30–50 ft | 86–110 in | Tri-axle |
All Globe lowboy trailers are built to order in the USA — dimensions are typical ranges matched to your load. Request a quote or call 1-800-800-3484.
Looking to buy? Browse Globe Lowboy Trailers for sale in our in-stock Globe Trailers dealer inventory, or call 1-800-800-3484 for a factory-direct quote.
Frequently Asked Questions
What is a lowboy trailer?
A lowboy trailer — also called a low-bed, low-loader or double-drop trailer — is a semi-trailer with a deck that sits very low to the ground, with one drop just behind the gooseneck and a second drop ahead of the rear axles. That low deck lets it legally haul tall, heavy and oversized equipment such as excavators, dozers and cranes. Globe builds lowboy trailers to order in the USA from 35–40 ton up to 60–80 ton, plus extendable models.
What capacities do Globe lowboy trailers come in?
Globe builds lowboy trailers from 35–40 ton up to 60–80 ton, plus extendable models, in standard, paver-special and beavertail configurations.
Are Globe lowboy trailers built to order?
Yes. Every Globe lowboy trailer is custom-built to order, so deck length, axle setup and swing clearance can be matched to your loads.
Where are Globe lowboy trailers manufactured?
Globe Trailers manufactures all of its lowboy trailers in the USA at its Bradenton, Florida facility.
Does Globe build detachable or removable gooseneck (RGN) lowboys?
Yes. Globe builds hydraulic detachable gooseneck lowboy trailers - also called removable gooseneck or RGN trailers - where the gooseneck detaches so equipment can be driven on at ground level. The configuration is matched to your load at order time.
How do I get a price on a Globe lowboy trailer?
Globe lowboy trailers are build-to-order, so pricing is provided by quote. Request a quote online or call 1-800-800-3484.
What are the dimensions of a Globe lowboy trailer?
Across Globe's lowboy range, deck heights run about 18–24 inches, deck lengths from 18 up to 50 feet on extendable models, and swing clearance from roughly 86 to 126 inches. Every lowboy is built to order, so exact dimensions are matched to your load.
How much does a Globe lowboy trailer haul?
Globe lowboy trailers are rated from 35–40 ton up to 60–80 ton of payload, with axle setups from a 2-axle-plus-flip up to 3+3+3 for the heaviest concentrated loads. Capacity is matched to your equipment at order time.
How long is a lowboy trailer?
A lowboy trailer's lower deck (the "well") is commonly about 24–29 feet, with overall trailer lengths up to roughly 48–53 feet. Globe builds lowboy decks from 18 feet up to 50 feet on extendable models, so usable deck length is matched to your load at order time.
How tall is a lowboy trailer deck?
Lowboy deck heights typically run 18–24 inches off the ground — low enough to keep tall, heavy equipment under legal height limits. Across Globe's lowboy range, loaded deck heights run about 18–24 inches, set to your load and route.
What is an RGN or removable gooseneck trailer?
An RGN — removable gooseneck, also called a detachable gooseneck — is a lowboy trailer whose front gooseneck detaches and lowers the front of the deck to the ground, so equipment can be driven straight on, then reattaches for transport. Globe builds hydraulic detachable gooseneck (RGN) lowboy trailers to order from 35–40 ton up to 60–80 ton.
What is the difference between an RGN and a lowboy trailer?
An RGN (removable gooseneck) is a type of lowboy trailer, so the two terms overlap. "Lowboy" describes the low double-drop deck that keeps tall, heavy equipment under legal height limits; "RGN" describes how it loads — the front gooseneck detaches and lowers the deck to the ground so equipment drives straight on, then reattaches for transport. A fixed-neck lowboy instead loads over the rear. Globe builds both fixed and hydraulic detachable gooseneck (RGN) lowboy trailers to order from 35–40 ton up to 60–80 ton.
What is another name for a lowboy trailer?
A lowboy trailer is also called a low-bed, low-loader or double-drop trailer, because of its low double-drop deck. When the front gooseneck detaches for ground-level loading it is known as a detachable or removable gooseneck (RGN) trailer. Globe builds lowboy trailers — fixed and hydraulic detachable gooseneck (RGN) — to order in the USA from 35–40 ton up to 60–80 ton, plus extendable models.
Where can I find Globe detachable gooseneck (RGN) lowboy trailers for sale?
Globe builds detachable gooseneck lowboy trailers — also called removable gooseneck or RGN trailers — to order from 35–40 ton up to 60–80 ton, where the gooseneck detaches for ground-level, drive-on loading. To buy, browse in-stock units in the Globe Trailers dealer inventory or call 1-800-800-3484 for a factory-direct quote.
How much weight can a lowboy trailer carry?
It depends on the axle count: a 2-axle lowboy typically carries up to about 40,000 lb, 3-or-more-axle lowboys reach roughly 80,000 lb, and multi-axle heavy-haul builds carry far more. Globe builds lowboy trailers rated from 35-40 ton up to 60-80 ton, with axle setups from a 2-axle-plus-flip up to 3+3+3 matched to your load and route.
How wide is a lowboy trailer?
A standard lowboy deck is about 8.5 feet (102 inches) wide - the legal over-the-road maximum - and can be built wider, up to roughly 10.5 feet, with outriggers for oversized loads. Globe builds its lowboy trailers to legal deck width with outrigger and swing-clearance options matched to your load.
How much does a lowboy trailer cost?
Lowboy trailer pricing depends on capacity (35-40, 50-55 or 60-80 ton), axle configuration, deck length and options such as an extendable deck or detachable gooseneck - so there is no single list price. Globe builds every lowboy to order in the USA and quotes factory-direct: call 1-800-800-3484, or browse in-stock dealer inventory for current for-sale units.
What is a non-ground-bearing detachable gooseneck?
A non-ground-bearing detachable gooseneck is a hydraulic detachable (RGN) neck designed so the deck can be loaded from the front without the neck resting on the ground during the normal detach and reconnect cycle. Globe builds hydraulic detachable gooseneck lowboy trailers to order from 35-40 ton up to 60-80 ton, matched to your tractor's hydraulic setup.
How much does a lowboy trailer weigh?
Empty (tare) weight depends on deck length, axle count, neck style, suspension, ramps, decking and options. As examples, one three-axle 50 ton Globe configuration weighs about 22,700 lb empty and one 30-foot-well build about 24,000 lb, with auxiliary flip axles adding weight. Every Globe lowboy is built to order and ships with unit-specific weight documentation.
Does Globe build double drop trailers for sale?
Yes. A double drop trailer is another name for a lowboy - the deck drops once behind the gooseneck and again ahead of the rear axles, keeping tall equipment under legal height limits. Globe builds double drop (lowboy) trailers to order in the USA from 35-40 ton up to 60-80 ton, in fixed and hydraulic detachable gooseneck (RGN) configurations. To buy, browse in-stock units in the Globe Trailers dealer inventory or call 1-800-800-3484 for a factory-direct quote.
Where can I buy a hydraulic detachable gooseneck lowboy trailer?
Globe builds hydraulic detachable gooseneck (RGN) lowboy trailers for sale - the neck detaches hydraulically, without resting on the ground, so equipment drives on at ground level - in 35-40, 50-55 and 60-80 ton ratings plus extendables. Browse in-stock hydraulic RGN lowboys in the Globe Trailers dealer inventory or call 1-800-800-3484 for a factory-direct quote.
