Globe 55LB1007203 55 Ton Lowboy
55LB1007203
- Capacity
- 55 US tons
- Deck height
- 22 in
- Deck length
- 26 ft
- Gooseneck
- Hydraulic detachable, non-ground-bearing
View specifications
Swing clearance: 102 in
Axles: Not listed in the card summary; see drawing.
One US short ton is 2,000 lb. Deck height is the distance from the ground to the deck. Swing clearance is the clearance available for the tractor to turn beneath the gooseneck.
Non-ground-bearing (NGB) means the gooseneck uses the tractor fifth wheel to support the lifting action instead of a hydraulic foot against the ground.
Capacity applies to the specified build and load footprint. The drawing identifies the complete configuration.
Globe 50LB658939 50 Ton Lowboy
50LB658939
- Capacity
- 50 US tons
- Deck height
- 22 in
- Deck length
- 24 ft
- Gooseneck
- Hydraulic detachable, non-ground-bearing
View specifications
Swing clearance: Not listed in the card summary; see drawing.
Axles: Not listed in the card summary; see drawing.
One US short ton is 2,000 lb. Deck height is the distance from the ground to the deck. Swing clearance is the clearance available for the tractor to turn beneath the gooseneck.
Non-ground-bearing (NGB) means the gooseneck uses the tractor fifth wheel to support the lifting action instead of a hydraulic foot against the ground.
Capacity applies to the specified build and load footprint. The drawing identifies the complete configuration.
Globe 55LB975302 55 Ton Lowboy
55LB975302
- Capacity
- 55 US tons
- Deck height
- 22 in
- Deck length
- 26 ft
- Gooseneck
- Hydraulic detachable, non-ground-bearing
View specifications
Swing clearance: Not listed in the card summary; see drawing.
Axles: Not listed in the card summary; see drawing.
One US short ton is 2,000 lb. Deck height is the distance from the ground to the deck. Swing clearance is the clearance available for the tractor to turn beneath the gooseneck.
Non-ground-bearing (NGB) means the gooseneck uses the tractor fifth wheel to support the lifting action instead of a hydraulic foot against the ground.
Capacity applies to the specified build and load footprint. The drawing identifies the complete configuration.
Globe 55LB1237752 55 Ton Lowboy
55LB1237752
- Capacity
- 55 US tons
- Deck height
- 22 in
- Deck length
- 26 ft
- Gooseneck
- Hydraulic detachable
View specifications
Swing clearance: Not listed in the card summary; see drawing.
Axles: Not listed in the card summary; see drawing.
One US short ton is 2,000 lb. Deck height is the distance from the ground to the deck. Swing clearance is the clearance available for the tractor to turn beneath the gooseneck.
Capacity applies to the specified build and load footprint. The drawing identifies the complete configuration.

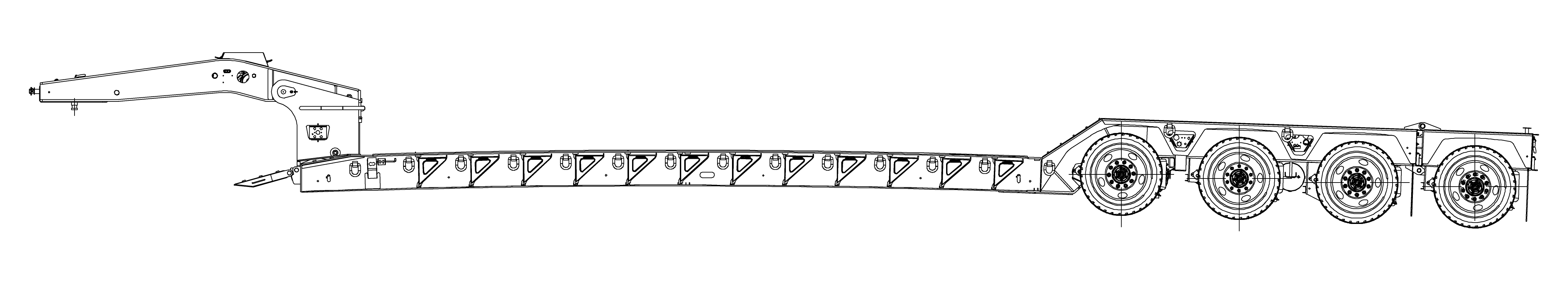

Globe 55LB458712 55 Ton Lowboy
55LB458712
- Capacity
- 55 US tons
- Deck height
- 22 in
- Deck length
- See drawing
- Gooseneck
- Hydraulic detachable, non-ground-bearing
View specifications
Swing clearance: 102 in
Axles: Not listed in the card summary; see drawing.
One US short ton is 2,000 lb. Deck height is the distance from the ground to the deck. Swing clearance is the clearance available for the tractor to turn beneath the gooseneck.
Non-ground-bearing (NGB) means the gooseneck uses the tractor fifth wheel to support the lifting action instead of a hydraulic foot against the ground.
Capacity applies to the specified build and load footprint. The drawing identifies the complete configuration.
Globe 55LB657073 55 Ton Lowboy
55LB657073
- Capacity
- 55 US tons
- Deck height
- 22 in
- Deck length
- 26 ft
- Gooseneck
- Hydraulic detachable, non-ground-bearing
View specifications
Swing clearance: Not listed in the card summary; see drawing.
Axles: Not listed in the card summary; see drawing.
One US short ton is 2,000 lb. Deck height is the distance from the ground to the deck. Swing clearance is the clearance available for the tractor to turn beneath the gooseneck.
Non-ground-bearing (NGB) means the gooseneck uses the tractor fifth wheel to support the lifting action instead of a hydraulic foot against the ground.
Capacity applies to the specified build and load footprint. The drawing identifies the complete configuration.

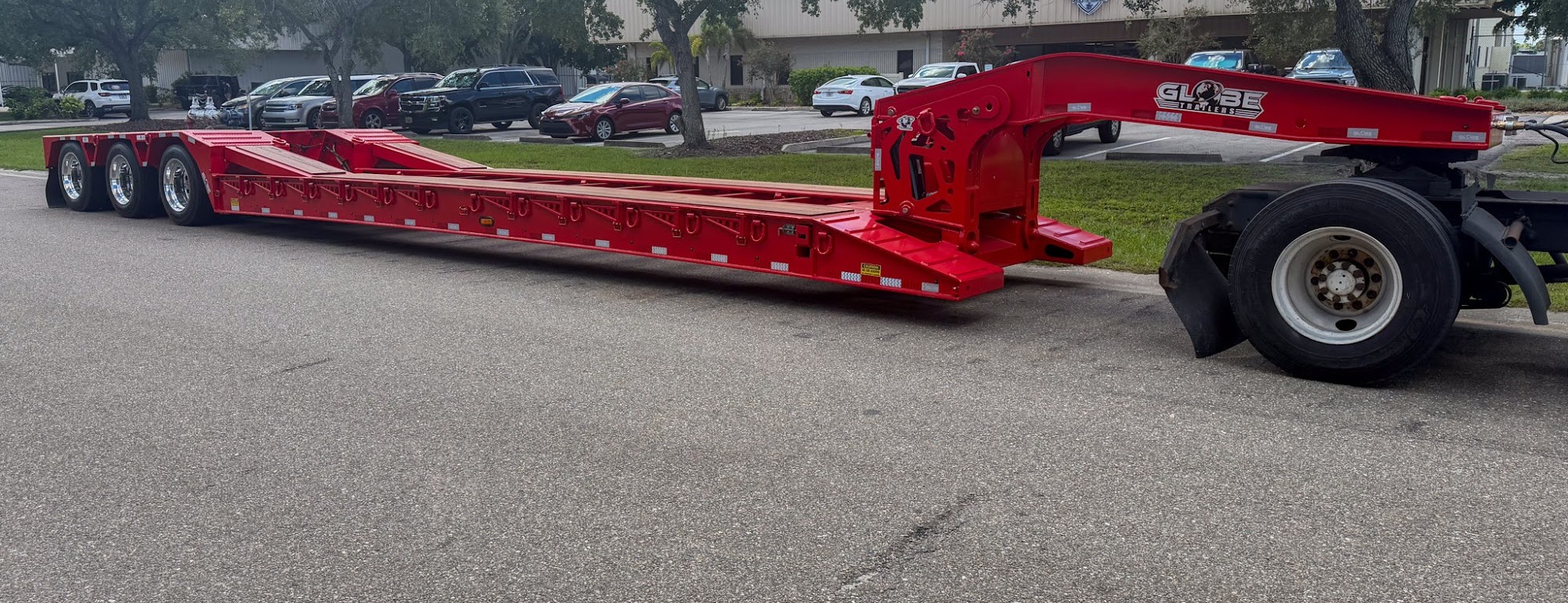

Globe 51LB834201 51 Ton Lowboy
51LB834201
- Capacity
- 51 US tons
- Deck height
- 22 in
- Deck length
- 26 ft
- Gooseneck
- Hydraulic detachable, non-ground-bearing
View specifications
Swing clearance: Not listed in the card summary; see drawing.
Axles: Not listed in the card summary; see drawing.
One US short ton is 2,000 lb. Deck height is the distance from the ground to the deck. Swing clearance is the clearance available for the tractor to turn beneath the gooseneck.
Non-ground-bearing (NGB) means the gooseneck uses the tractor fifth wheel to support the lifting action instead of a hydraulic foot against the ground.
Capacity applies to the specified build and load footprint. The drawing identifies the complete configuration.
Globe 55LB546040 55 Ton Lowboy
55LB546040
- Capacity
- 55 US tons
- Deck height
- 22 in
- Deck length
- See drawing
- Gooseneck
- Detachable
View specifications
Swing clearance: Not listed in the card summary; see drawing.
Axles: 4
One US short ton is 2,000 lb. Deck height is the distance from the ground to the deck. Swing clearance is the clearance available for the tractor to turn beneath the gooseneck.
Capacity applies to the specified build and load footprint. The drawing identifies the complete configuration.
Globe 55LB1280363 55 Ton Lowboy
55LB1280363
- Capacity
- 55 US tons
- Deck height
- 22 in
- Deck length
- 26 ft
- Gooseneck
- Hydraulic detachable, non-ground-bearing
View specifications
Swing clearance: Not listed in the card summary; see drawing.
Axles: Not listed in the card summary; see drawing.
One US short ton is 2,000 lb. Deck height is the distance from the ground to the deck. Swing clearance is the clearance available for the tractor to turn beneath the gooseneck.
Non-ground-bearing (NGB) means the gooseneck uses the tractor fifth wheel to support the lifting action instead of a hydraulic foot against the ground.
Capacity applies to the specified build and load footprint. The drawing identifies the complete configuration.
Globe 50–55 Ton Lowboy Trailer specs at a glance: capacity 50–55 ton, deck height 18–22 in, deck length 18–30 ft, swing clearance 98–102 in, axle setup Tri-axle + flip, hydraulic detachable gooseneck (RGN) — built to order in the USA.
Looking to buy? Browse 50–55 Ton Lowboy Trailers for sale in our in-stock Globe Trailers dealer inventory, or call 1-800-800-3484 for a factory-direct quote.
Frequently Asked Questions
What is the capacity of a Globe 50-55-ton lowboy trailer?
This range includes 50-ton models rated for 100,000 pounds, 51-ton models for 102,000 pounds, and 55-ton models for 110,000 pounds of payload. These are US short tons. Each rating applies to the specified build and the length over which the load is supported.
Can I customize the deck and axles on a 50-55-ton lowboy?
Yes. Deck length, width, layout, and loaded height can be selected for the application. Axle options include three-axle arrangements, flip axles, lift axles, and compatible jeep or stinger setups. Standard 55-ton builds have 6 inches of loaded ground clearance: 16-inch main beams give a 22-inch deck height, 14-inch beams give 20 inches, and 12-inch beams give 18 inches.
Where is the Globe 50-55-ton lowboy manufactured?
Globe manufactures its 50-55-ton lowboys in Bradenton, Florida, USA.
Is the 50-55-ton lowboy a detachable or removable gooseneck (RGN)?
Yes. Hydraulic detachable-gooseneck, or RGN, configurations are available in the 50-55-ton range. The neck detaches and the front of the deck lowers to the ground for front loading.
How do I buy a 50-55-ton lowboy trailer?
Browse Globe dealer inventory for 50-55-ton lowboys, or request a factory quote online or at 1-800-800-3484 for a trailer built to your requirements.
What comes standard on a Globe 50-ton lowboy trailer?
A typical Globe 50-ton hydraulic detachable-gooseneck configuration includes three axles, a non-ground-bearing neck, air-ride suspension, hardwood decking, steel front ramps, LED lighting, and a powder-coated finish. Standard equipment varies by the selected model.
